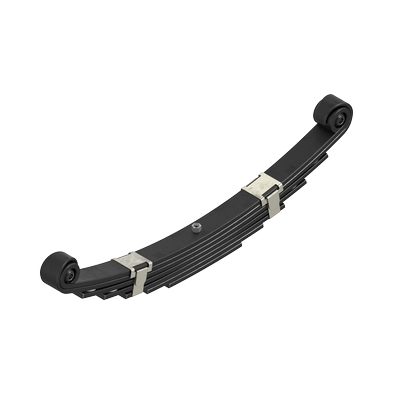

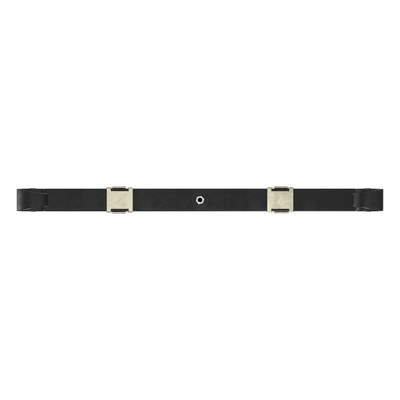

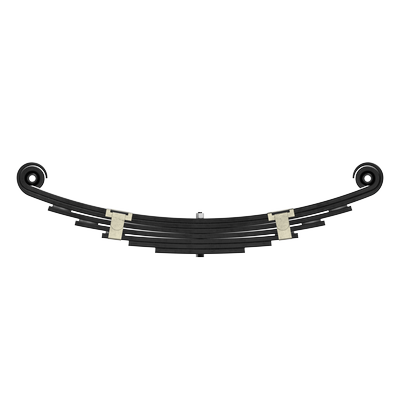

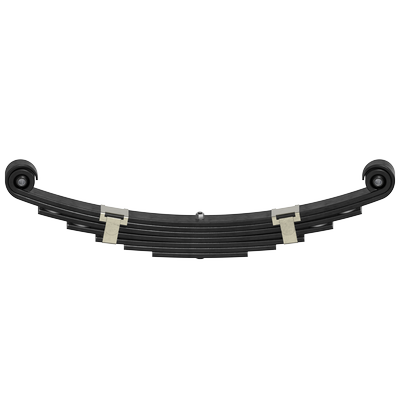

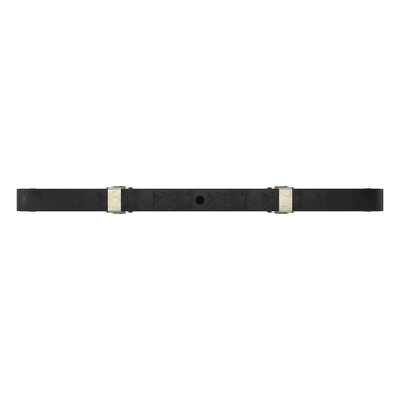

Haul Pro 7-leaf Trailer Spring, Military Wrap, HD Rubber Bushing; 3950 lb Capacity
- SKU: HP-13-7MR1
- Category: Leaf Springs
-
Brand:
$301.77
Description
7-leaf, Military Wrap, HD Rubber Bushing, HD Clip Style Keepers, and Anti-Friction Pads, 25-1/4" Eye-to-Eye Spring

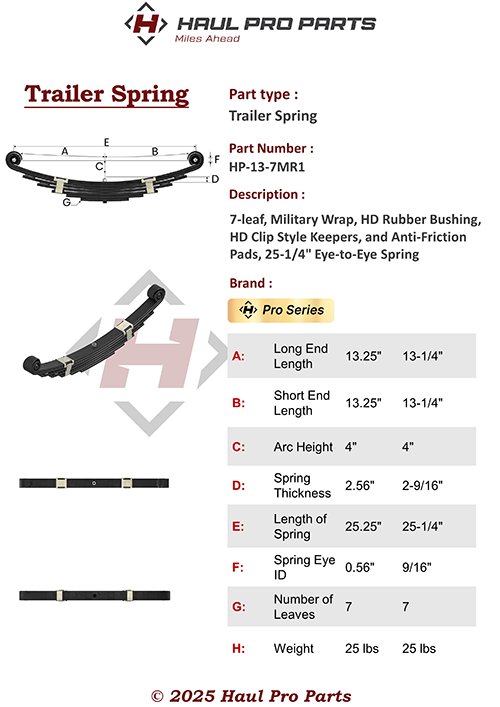

Specification
Note: Measurements are approximate ≈ and may vary slightly due to manufacturing tolerances.| Number of Leaves | 7 | 7 |
| Wrap Type | Military Wrap | Military Wrap |
| Bushing Type | HD Rubber Bushing | HD Rubber Bushing |
| Individual Load Capacity | 3950 lbs | 3950 |
| Pair Capacity | 7900 lbs | 7900 |
| Suggested Axle Rating | 6-7k | 6-7k |
| Eye-to-Eye Length | 25-1/4" | 25.25 |
| Eye / Center Bolt | 13-1/4" | 13.25 |
| Pack Thickness | 2-9/16" | 2.56 |
| Total Width OD | 27.5" | 27.5 |
| Free Arc | 4 | 4 |
| Weight | 25 lbs | 25 |
Interchange
No interchange data available.
