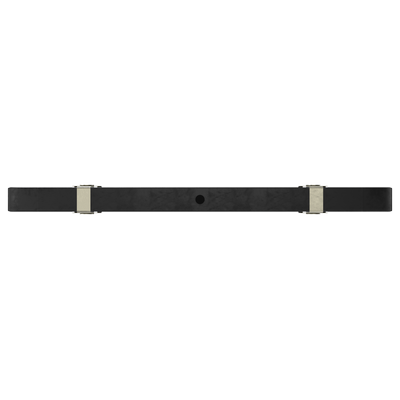

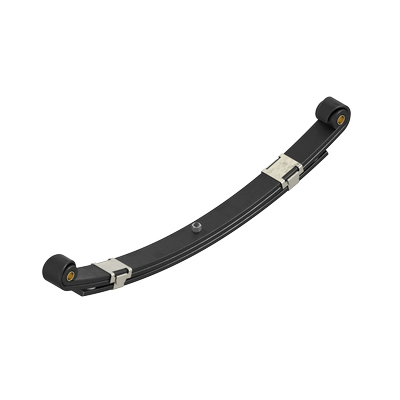

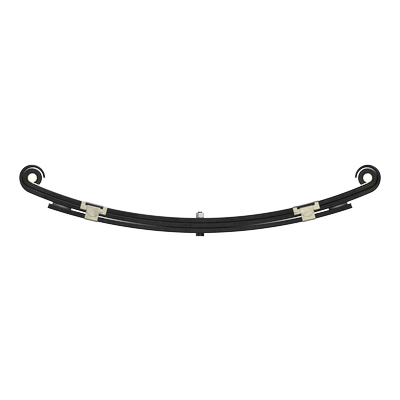

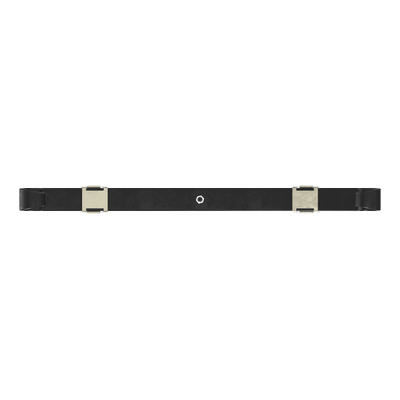

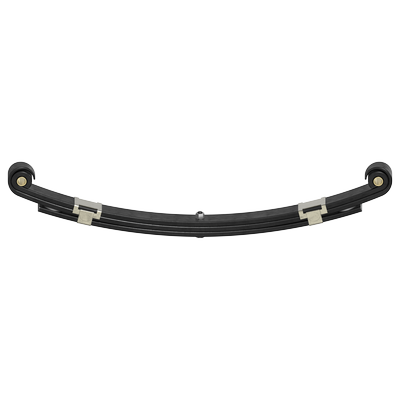

Haul Pro 3-leaf Trailer Spring, Military Wrap, Brass Bushing; 1650 lb Capacity
- SKU: HP-13-3MB1
- Category: Leaf Springs
-
Brand:
$151.06
Description
3-leaf, Military Wrap, Brass Bushing, HD Clip Style Keepers, and Anti-Friction Pads, 25-1/4" Eye-to-Eye Spring

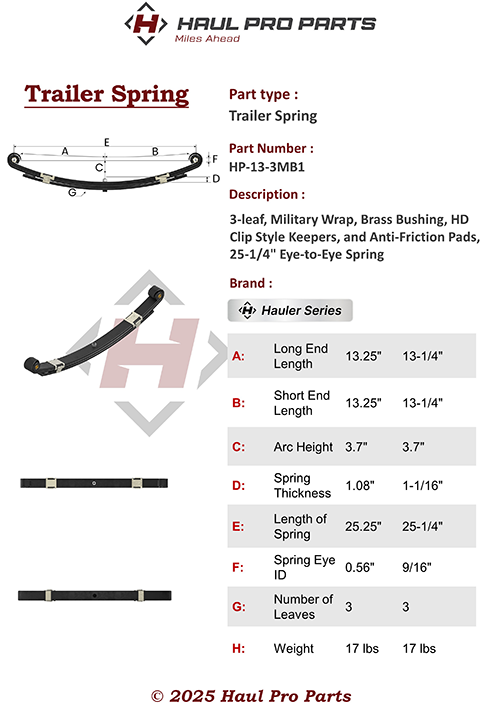

Specification
Note: Measurements are approximate ≈ and may vary slightly due to manufacturing tolerances.| Number of Leaves | 3 | 3 |
| Wrap Type | Military Wrap | Military Wrap |
| Bushing Type | Brass Bushing | Brass Bushing |
| Individual Load Capacity | 1650 lbs | 1650 |
| Pair Capacity | 3300 lbs | 3300 |
| Suggested Axle Rating | 2k | 2k |
| Eye-to-Eye Length | 25-1/4" | 25.25 |
| Eye / Center Bolt | 13-1/4" | 13.25 |
| Pack Thickness | 1-1/16" | 1.08 |
| Total Width OD | 27.5" | 27.5 |
| Free Arc | 3.7 | 3.7 |
| Weight | 17 lbs | 17 |
Interchange
No interchange data available.
