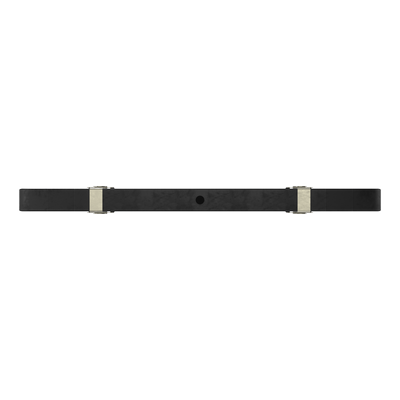

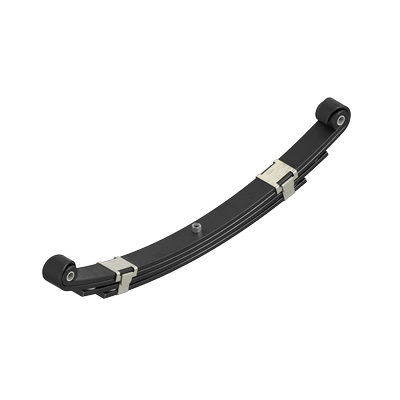

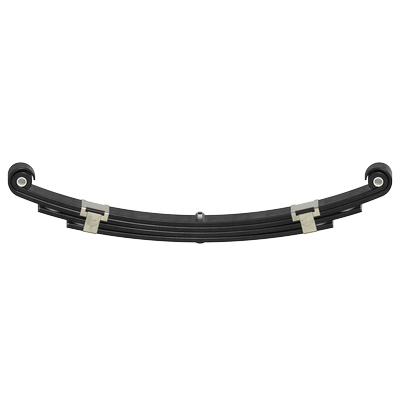

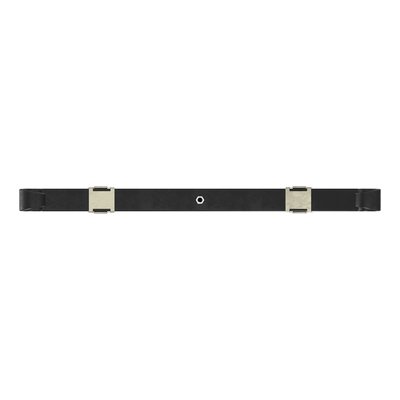

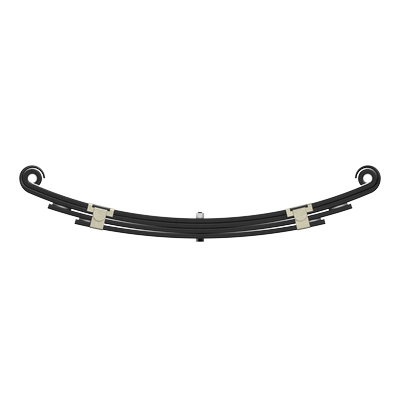

Haul Pro 4-leaf Trailer Spring, Military Wrap, Nylon Bushing; 2200 lb Capacity
- SKU: HP-13-4MN1
- Category: Leaf Springs
-
Brand:
$169.09
Description
4-leaf, Military Wrap, Nylon Bushing, HD Clip Style Keepers, and Anti-Friction Pads, 25-1/4" Eye-to-Eye Spring

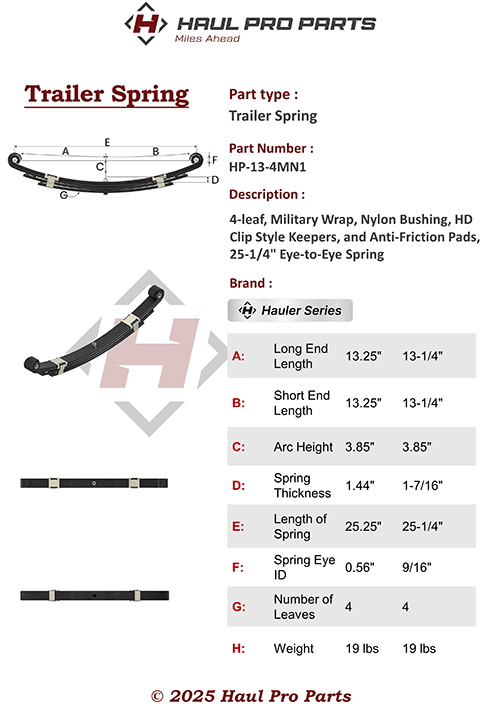

Specification
Note: Measurements are approximate ≈ and may vary slightly due to manufacturing tolerances.| Number of Leaves | 4 | 4 |
| Wrap Type | Military Wrap | Military Wrap |
| Bushing Type | Nylon Bushing | Nylon Bushing |
| Individual Load Capacity | 2200 lbs | 2200 |
| Pair Capacity | 4400 lbs | 4400 |
| Suggested Axle Rating | 3.5k | 3.5k |
| Eye-to-Eye Length | 25-1/4" | 25.25 |
| Eye / Center Bolt | 13-1/4" | 13.25 |
| Pack Thickness | 1-7/16" | 1.44 |
| Total Width OD | 27.5" | 27.5 |
| Free Arc | 3.85 | 3.85 |
| Weight | 19 lbs | 19 |
Interchange
No interchange data available.
